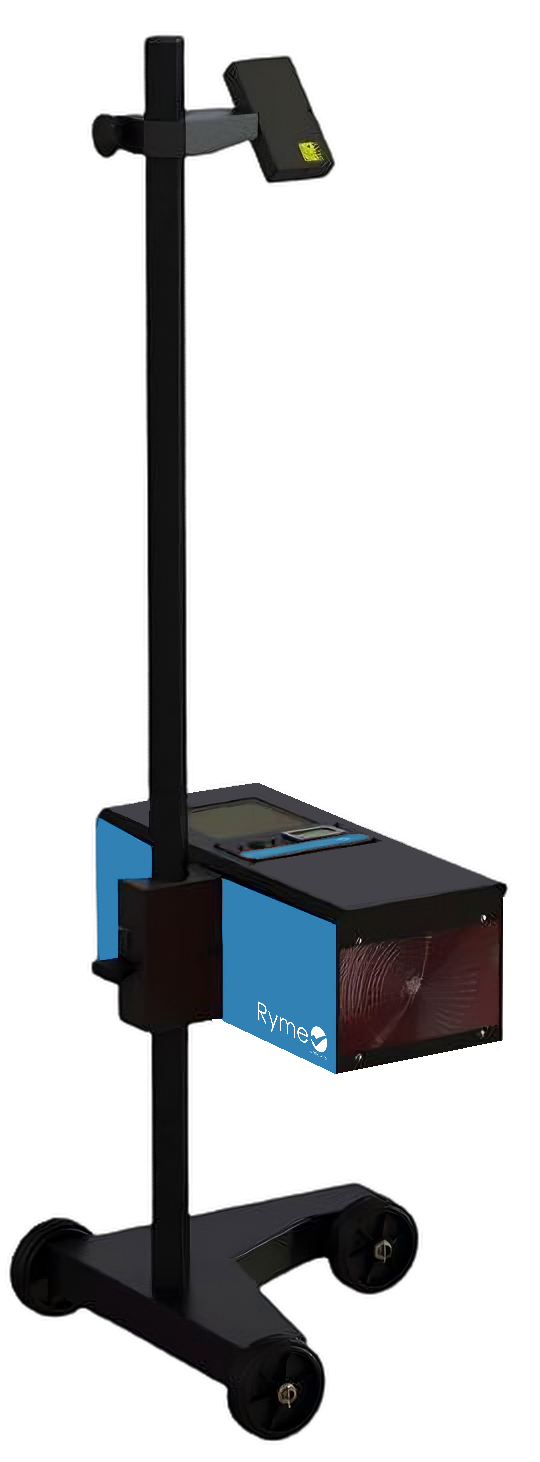

Analogic Headlight Tester RY-5413

Analogic headlight tester RY-5413 with digital luxmeter manufactured in Spain.

Main features

  • Suitable for checking and adjusting any type of headlamp
  • Suitable for both workshops and Technical Inspection Centres (ITV).
  • Fixed verification screen with scale adapted to ITV regulations (from 0 to -6 %)
  • The equipment is supplied with level adjustment on the foot to compensate for the inclination of the road surface, and a level on the optical block to check the level.
  • Comfortable rolling thanks to the position of the wheels
  • Robust anti-tip base
  • Digital luxmeter
Luxometer-regloscope-analog-RY-5413-Ryme

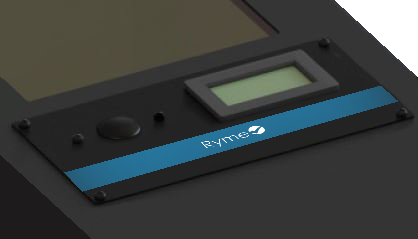

Digital luxmeter

Technical data

  • Column height

    1500 mm

  • Supported lights

    Halogen, xenon, LED, dipped beam, main beam, fog lamp

  • Wheels3 adjustable wheels
  • Measuring range150.000 cd
  • Error

    ±0.2 %
