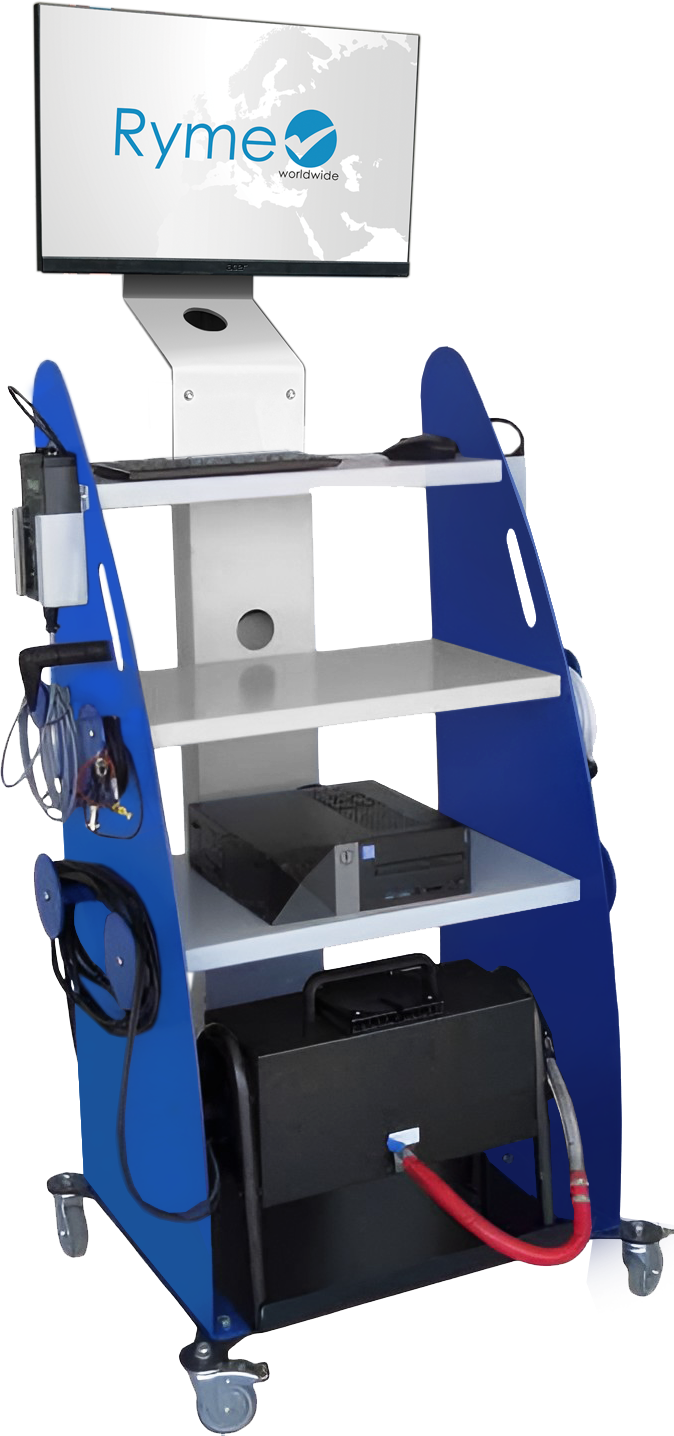

Opacimeter RY-500AH
The Opacimeter RY-500AH is a partial flux meter based on the principle of light absorption by smoke. It allows an official opacity test to be carried out, guided step by step by the programme. It has a configuration module that allows you to consult and modify the operating parameters.
Standard equipment
- Smoke analyser module
- Sampling probe
- Special cabinet for emissions equipment
- Commissioning certificate for opacimeter module F
- Electronic control and SMRW Software
- Temperature and RPM measuring sensors
Technical data
Technical data and dimensions opacimeter
- Environmental working conditions: TemperatureAmb. temp. in use: -10 to 55ºC / Amb. temp. in official use: 0 to 45ºC
- Environmental working conditions: Humidity30-90%
- Environmental working conditions: Pollution<2%
- Storage temperature-32 to 55ºC
- OpticsGreen light source between 480 and 680 mm, max. 565 mm
- DetectorSilicon photodiode
- Response timeFrom 10 to 90%, <0,2 s
- Acoustic noise53 dB
- Warm-up period3-6 min, depending on outside temperature
- Standard test probe745 mm / 10 mm
-
Opacity (range, resolution)
N: 0-100% / 0,10% K: 0,00-9,99 m-1 / 0,01 m-1
- Power supply230 V 50 Hz
-
Regulations it complies with
ISO 11614, EMC Standard UNE 82503, NFR 10025-2016
- Measurement of the opacity at % and the absorption coefficient "k", calculated according to Beer-Lambert's Law
Software
Ryme Worldwide has SMRW (Software Maquinaria Ryme Worldwide) for its equipment, which is responsible for collecting information from our equipment and peripherals, analysing it and displaying it on the information output device. All of this is accompanied by the necessary electronics to optimise performance to the maximum.
Work in your inspection centre or workshop in the fastest and most efficient way with the operation of our Ryme Worldwide Machinery Software.
A unique way of working designed to make the inspector's job easier.
No redundancies, what you need, when you need it, how you need it. Read more
