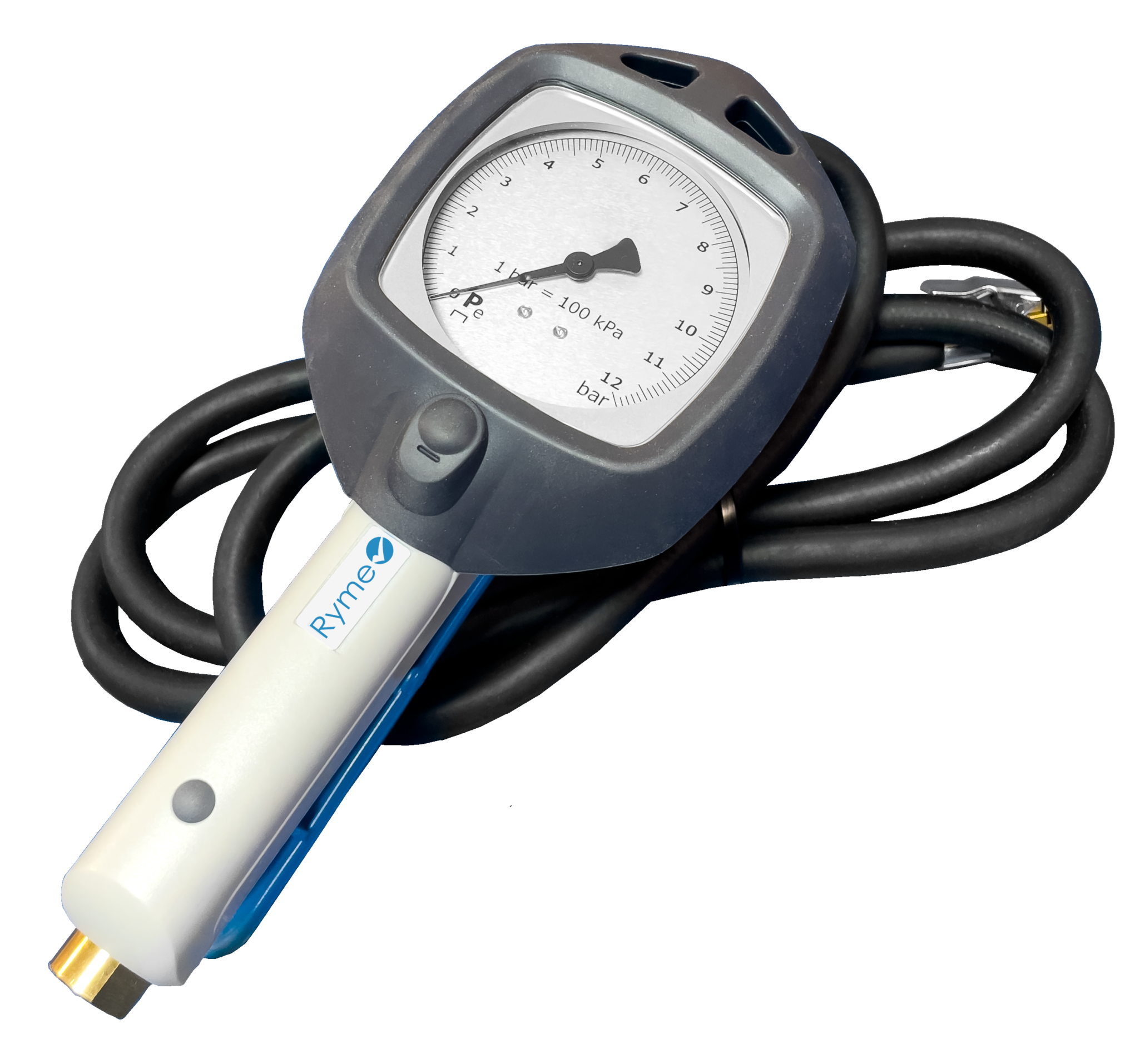

Tire pressure gauge RY-AIRFORCE II
Description
Specifications
Downloads
Description
manometer / inflator gun Ry-AirForce II complies with RD244/2016 and with Metrology Law 32/2014, Order ICT/155/2020 which regulates metrological control.
Its robust and lightweight design has been further enhanced with a nylon body and a new metal inlet, making it ideal for any type of environment.
With an easy-to-use display for fast, hassle-free inflation, this pressure gauge has BS EN 12645:2014 approvals and certifications.
It features a high performance mechanical dial with approvals to meet the latest industry standard EC86/217.
Main features:
- Modern design
- lighter
- shock resistant
- New nylon handle feature
- Standard metal entry
- Bourdon tube in copper to increase robustness
- Direct valve design increases inflation and deflation rates
- Built-in swivel and hanging device
- Scales in bar, psi and kPa
Standard equipment
- inflator gauge
Specifications
Technical data
-
Dimensions
250x110mm
-
Weight
350g
-
Range Tº use
-20 to 60ºC
-
Use humidity range
Up to 95% RG non-condensing
-
reading accuracy
0.1bar / 2psi /10kPa
-
input precision
15 bar/ 218 psi/ 1,500 kPa
-
inflation range
0-12 bar/ 170 psi/ 1,200 kPa
-
inflation rate
Max 910 l/min @ 13 bar supply
