Play detector for agricultural vehicles DHA

The electro-hydraulic agricultural play detector DHA checks the condition of agricultural vehicle axles and their components for wear and play on vehicles up to 3T.

The test plates installed at ground level are guided in their movements by the switches of the hand-held torch.

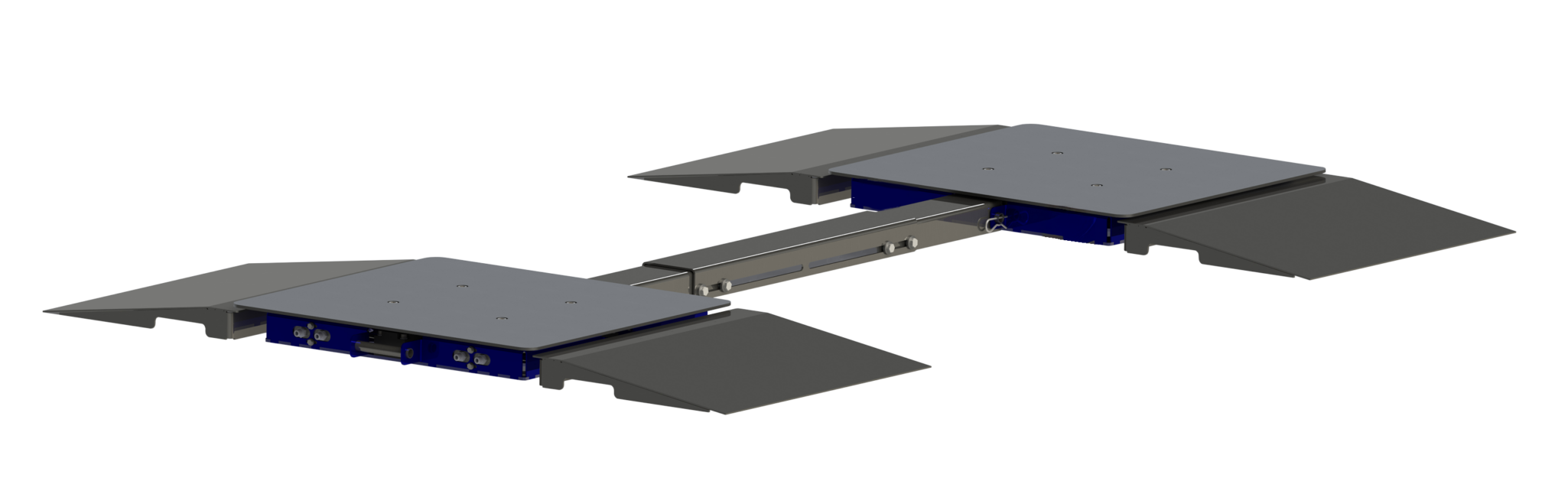

Supplied with two independent plates, extendable connecting beam and access ramps for easy assembly and disassembly.

Standard equipment

  • Electro-hydraulic play detector with transverse and longitudinal movements
  • Hydraulic power group
  • Electrical box
  • Coupling hoses
  • Control torch with cable

Technical data

  • Maximum axle load3 T
  • Engine2,2 kW
  • Voltage230 V 50 Hz
  • Thermal protector5,5-8 A
  • Fuse protection12 A
  • LED lamp12 V - 6 W
  • Hydraulic unit tank capacity15-18 l
  • Hydraulic pump7,5 l/min
  • Pushing force7 kN
  • Displacement per side100 mm
  • Travelling speed13 cm/s
  • Dimensions of each plate700 x 700 x 117 mm
  • Weight of each plate90 kg
  • Dimensions of the hydraulic unit565 x 711 x 980 mm
  • Weight of the hydraulic unit100 kg
  • Drive and control in a corded torch
