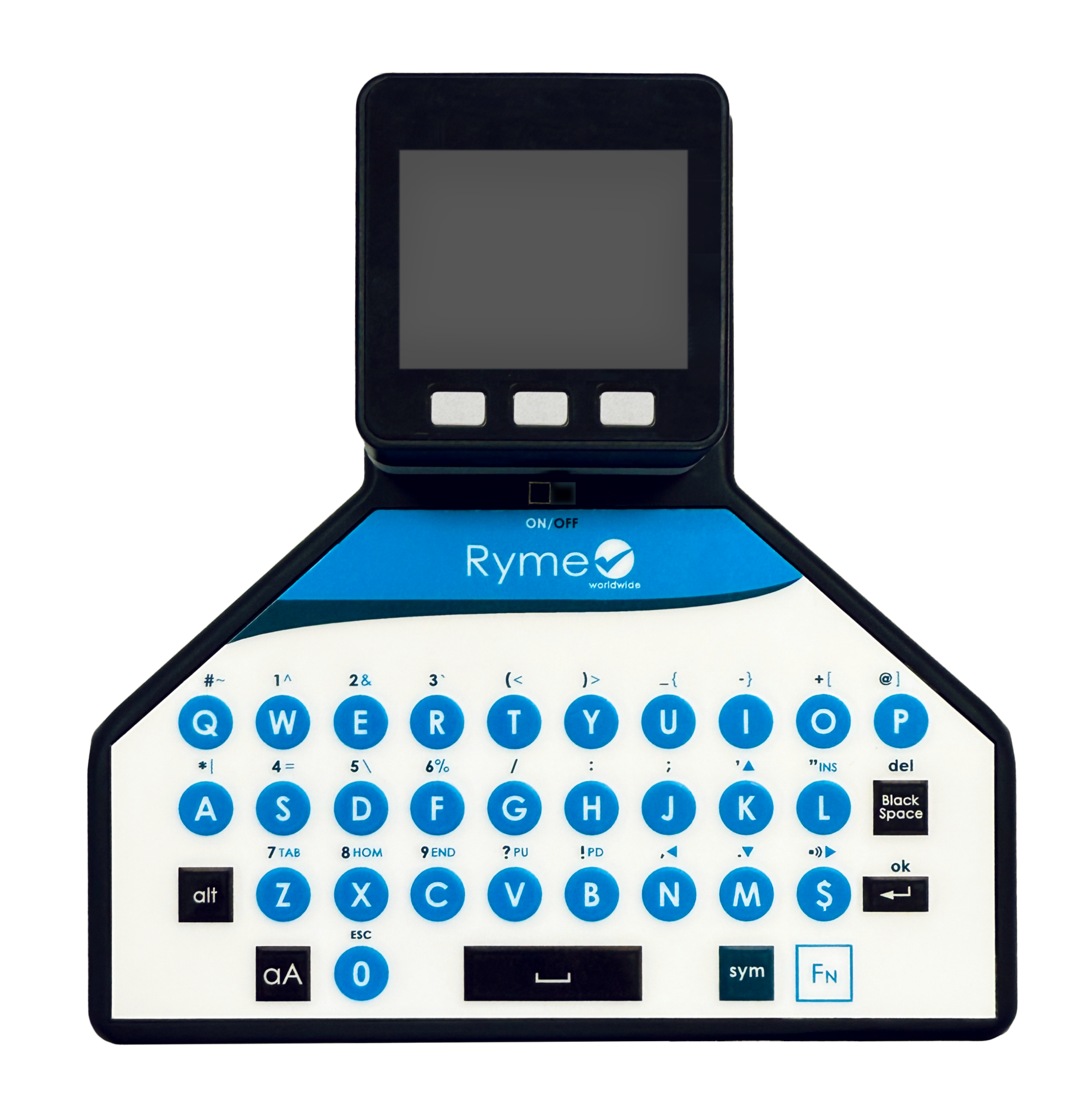

GPS taximeter verifier COM-05-00030

The GPS tester for taximeters GPS COM-05-00030 is a portable equipment focused on fare verification of all types of taxis, including taxis with the latest generation of taximeters. Ryme Worldwide's fare verification system measures speed, distance travelled and operating time.

Measuring equipment based on the Global Positioning System via Satellite (GPS). The measurement is performed by evaluating the vehicle's behaviour on the road. The taximeter tester automatically locates the satellites, evaluates the time and position information received and derives from this the space travelled as well as the speed of the vehicle.

ENAC test parameterisation: the test will be cancelled in case of non-compliance with minimum or maximum speeds or where the connection range is too low.

The GPS meter tester includes internal software that hosts all equipment functions on the device itself. For sending data, it includes a PC launcher to receive the information on the computer in a matter of seconds.

Standard equipment

  • Taxi Verifier
  • Satellite-based GPS receiver
  • Charger/PC connector via USB type C
  • External memory card

Technical data

Verifier

  • Dimensions110 x 55 x 32 mm
  • Briefcase230 x 190 x 55 mm
  • Weight of complete equipment

    186 g

  • Screen

    2.05" RGB

  • Measuring function

    40-120 km/h

  • GPS sensitivity

    167 dBm (industry leading)

  • Tolerance

    ± 2%

  • Connectivity

    USB Type-C

GPS receiver

  • Magnetic support

    Yes

  • Dilution of Precision (DOP)
  • Compatibility

    NEO-7 and NEO-6

  • Dimensions40 x 50 x 10 mm
  • Weight

    27 g
